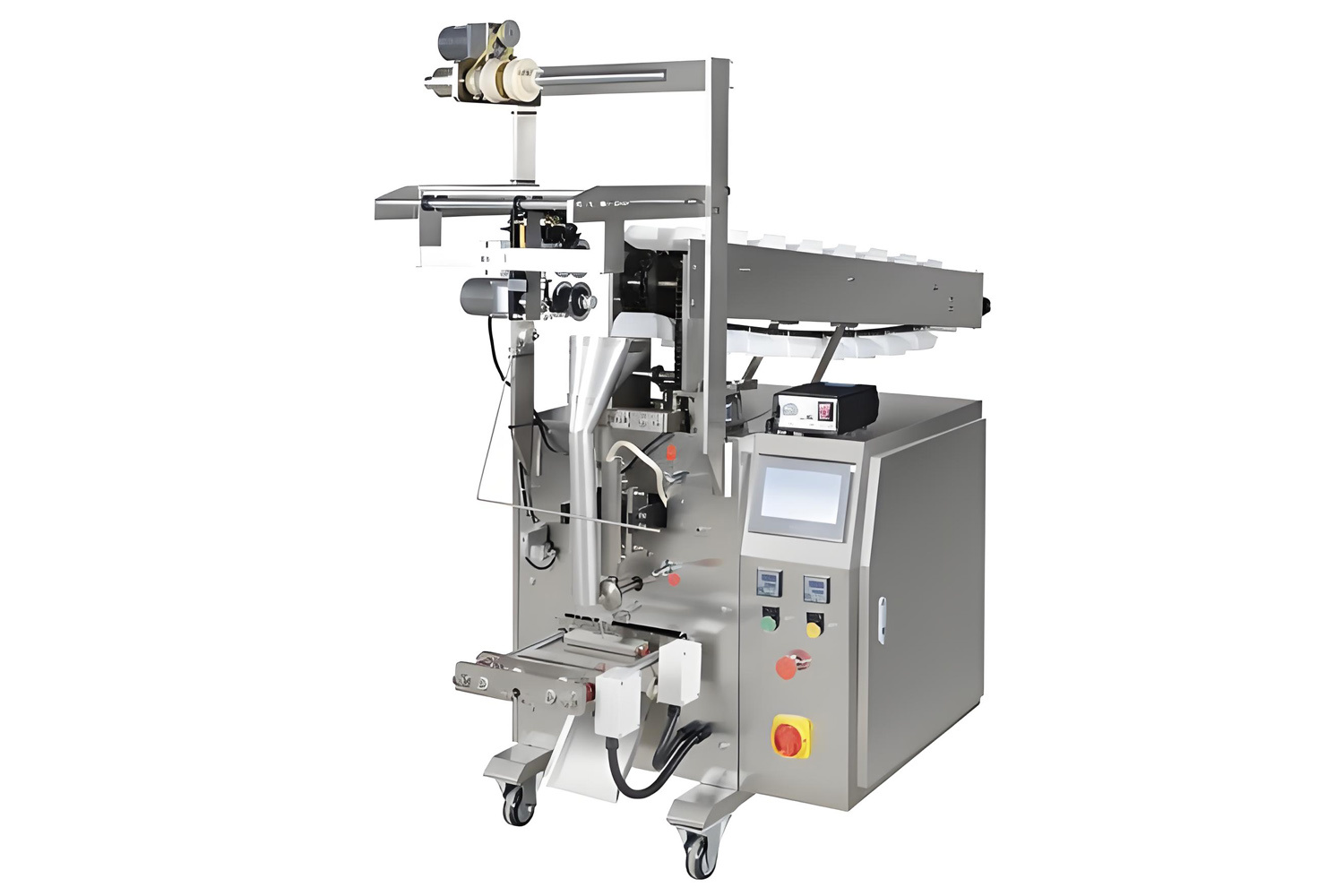

JAIV-388 Chain bucket type vertical granule packaging machine
APPLICATION:
Widely used in the food, cosmetic, agricultural products, plastic products, hardware and special industries and other products of the loose, non-viscous granular material automatic packaging. Such as: the seed, medicine, fodder, granule, pillar, monosodium glutamate, soup, oatmeal, tea, activated carbon, desiccant material such as packaging
MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

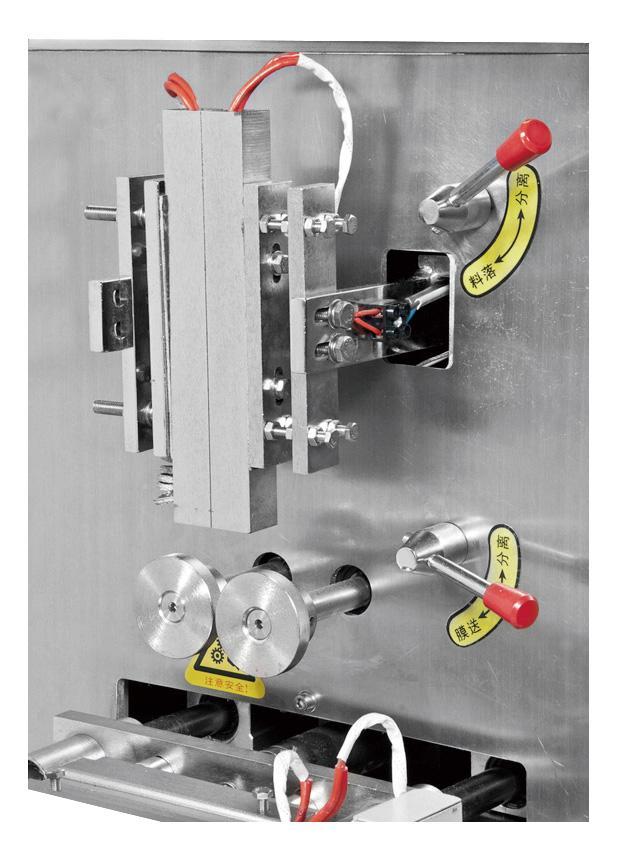

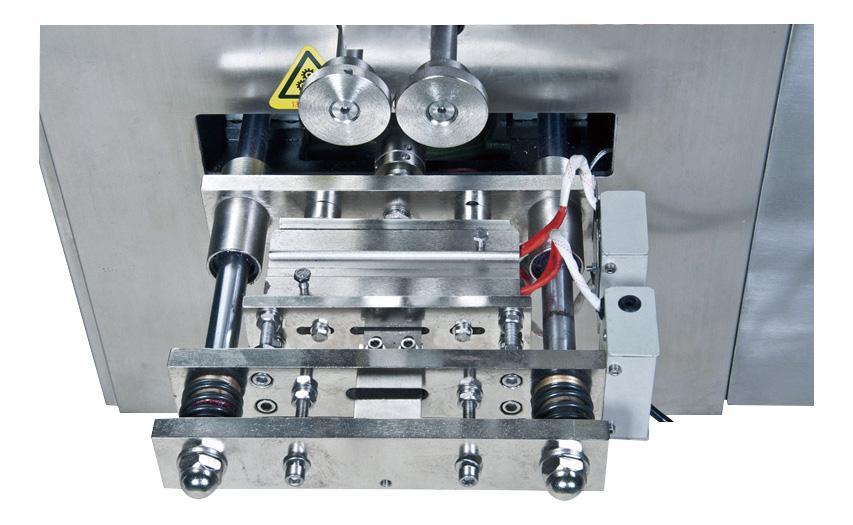

1. Automatic packaging machine can automatically finished pull bag, bag making, measuring, filling, sealing, cutting, counting, heat-printing codes, send out products with high automation in one operation .
2. Chinese display control system, stainless steel, just needed to set parameters (fill-up bag length, etc.), the control system will automatically optimize match the actions, thus achieving best packaging speed.
3. Stepping motor control, the system has high precision, no adjustment of other components can change the length of bag making, and accurate.
4. To adapt to all kinds of complex film and the aluminum foil packing materials, good performance, low noise, sealing texture clear, sealing strong
Scan the code to watch the video
Category:
TECHNICAL PARAMETER
Technical parameters
model | JAIV-388 |
packing material | opp\cpp opp\pe pet\pe |
max packing range | 800ml |
the bag size | 50-200(L)*40-150(W)mm |
packing speed | 10-70\m |
the max width of film roll | 320mm |
voltage | 220V \50HZ |
power | 2KW |
dimension | 1200（L）*700（W）*1600（H）mm |
the weight of machine | 300KG |
PRODUCT APPLICATION SCOPE
More applications
