260 Fully servo cartoning machine

APPLICATION:

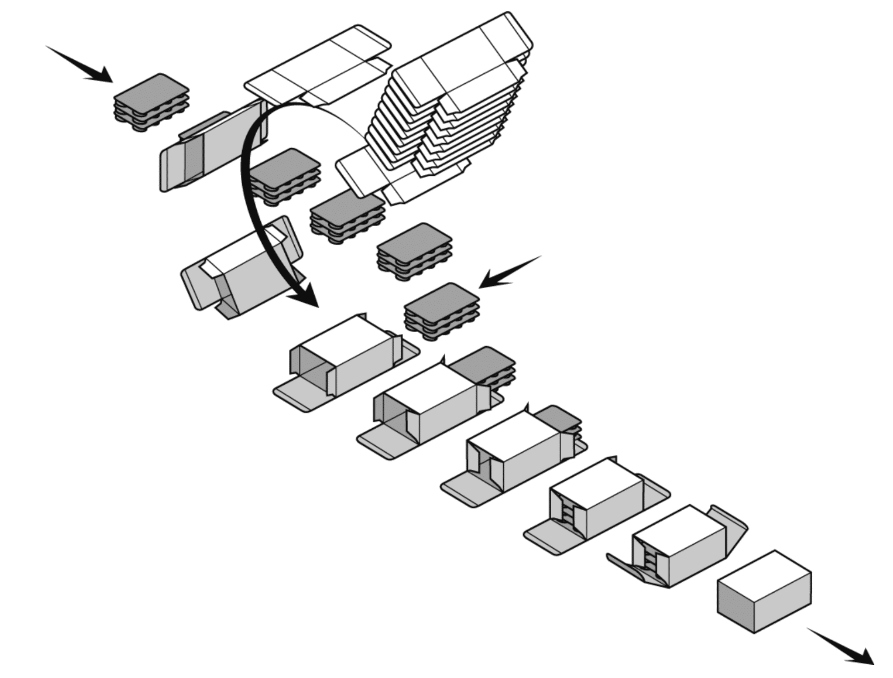

Cartoning machines automate product loading into pre-formed boxes, widely used in:

Pharmaceuticals: Pills, syringes, medical devices.

Food & Beverage: Tea bags, snacks, frozen meals.

Cosmetics: Lipsticks, creams, skincare products.

Consumer Goods: Electronics, toys, hardware.Key Benefits: High-speed, tamper-proof, and space-efficient packaging.

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1. Operation mode: intermittent.

2. There is a safe area that is open and easy to store materials.

3. Conveyor belt type box rack, customizable workstation expansion, achieving minimal footprint and easy cleaning.

4. The combination of full servo and optoelectric linkage ensures stable, sturdy and durable operation of the machine, and can adapt to harsh production environments.

5. Packaging materials include pens, bottles, small bags, medicines, etc.

6. The paper box is formed by a secondary opening method, and the material box pushing hand can be optionally equipped with a servo pushing hand.

7. Can be equipped with a material handling system to achieve fully automated production.

8. Power 6.5kW, air consumption 0.6-0.8 m3/min (pressure 0.5-0.7MPa).

9. Paper box selection: 300-350g/m2 white cardboard (reference standard: GB/T451.2-1989 Determination of Quantitative Determination of Paper and Paperboard).

10. Operating noise: ≤ 80db.

Scan the code to watch the video

WhatsApp:

+86 15916083726

Email:

info@kechuangpack.com
weilixiong726@kechuangpack.com

Category:

Cartoning Machine

Chat now

TECHNICAL PARAMETER

Technical parameters

Type	HY-260
Max production capacity	60 pcs/min
（LWH）Range (LWH)	L:65-300mm，W:90-220mm，H:50-115mm
Total power	6.5kW
Input voltage	Single phase 220V/50Hz/Three phase 380V/50Hz
Sealing type	Double tongue insertion, tongue buckle bottom, spray glue, etc
Air consumption	20m3/h(0.5-0.7MPa)
Gross weight	about 1.2T
Dimension	3900×1500×1800 mm
