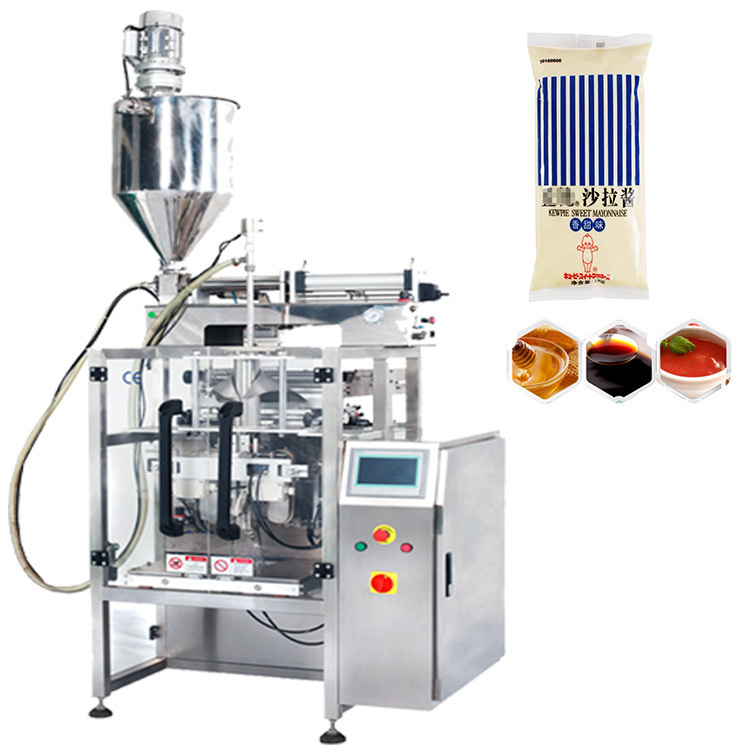

420/520/720 Liquid vertical packaging machine

APPLICATION:

This liquid vertical packaging machine is suitable for:sesame oil, chili oil, peppercorn oil, olive oil，Sachets of shampoo/conditioner/body wash.

  • 420/520/720 Liquid vertical packaging machine
420/520/720 Liquid vertical packaging machine
+

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1）Imported PLC full computer control system, color touch screen, easy to operate,

intuitive and efficient.

2）Impoted servo film transport system, imported color code sensor, accurate positioning,
excellent overall performance and beautiful packaging.
3）A variety of automatic alarm protection functions to minimize losser.
4）Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）Optional English or other languages screen display, easy and simple operation.
Both packaging speed and bag length can be set with one click.
7）All machines have CE certification.




Scan the code to watch the video

WhatsApp:

+86 15916083726

Email:

info@kechuangpack.com
weilixiong726@kechuangpack.com

Category:

Vertical Form-Fill-Seal (VFFS) Machine

Chat now
Contact Us

TECHNICAL PARAMETER

Machine Parameter:

TypeKC-420LKC-520LKC-720L
Film widthMax.420MMMax.520MMMax.720MM
Bag length80-300MM80-350MM180-350MM
Bag width60-200MM100-250MM100-500MM
Film thickness0.04-0.08 MM0.04-0.12MM0.04-0.12MM
Packaging rate5-60Bag/Min5-60Bag/Min5-55Bag/Min
Range of measurement150-1500ml2000ml4000ml
Machine size1217*1015*1343MM1488*1080*1490MM1780*1350*2050MM
Machine quality650KG680KG750KG
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 3KW



PRODUCT APPLICATION SCOPE

Bag samples
Bag samples

More applications

Food packaging machineVacuum packaging machineAutomatic weighing packaging machineScrew packaging machineLiquid packaging machine
Fruit packaging machinehorizontal packaging machineShrink wrapping machineSauce packaging machineVertical packaging machine
Powder packaging machinegranule packaging machineVegetable packaging machineHardware packaging machineMedicine packaging machine
Commodity packaging machinePet food packaging machineTissue packaging machineNut packaging machineHardware packaging machine
Acrylic pigment packaging machineAutomatic counting packaging machineFrozen food packaging machineDisposable tableware packaging machineTea packaging machine
Gift wrapping machinelabel machineFilling machineMulti lane packaging machinePer-made bag packaging machine
Per-made bag Vacuum packaging machineboxing machineCarton sealerMask packaging machineFoshan packaging machine
Packaging machine factoryHotel supplies packaging machineSlipper packaging machineDisposable dental packaging machineAuto screw parts packaging machine
Express bag packaging machineBubble film packaging machineAluminum profile packaging machineSteel pipe packaging machineWet wipes packaging machine
Furniture screw accessories packaging machineNon-woven bag packaging machineToilet paper packaging machinestationery packaging machineBaby product packaging machine
Cosmetic packaging machineAutomatic toilet paper packaging machineNoodle packaging machinePasta packaging machineSnack packaging machine
Candy packaging machinePuffed food packaging machineBaked goods packaging machinePowder packaging machinePlate packaging machine
Cup packaging machineDisposable tableware packaging machineDisposable skin care product packaging machineToy packaging machinePotato Chips Snacks packaging machine
Auto packaging machine with multi-head weighersDry Fruit packaging machineAutomatic packaging Machine for slice foodCoffee packaging machineBean packaging machine

Tag list： 420/520/720 Liquid vertical packaging machine

Previous Page

KC-420/520/720 Automatic Vertical Packing Machine With cup measuring For granule product

JAIV-388 Chain bucket type vertical granule packaging machine

Next Page

Previous Page

KC-420/520/720 Automatic Vertical Packing Machine With cup measuring For granule product

Next Page

JAIV-388 Chain bucket type vertical granule packaging machine

COMPANY DESCRIPTION

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Our main products are:  Horizontal flow packaging machine line, vertical packaging machine line, screw packaging  line, boxing machine  line, per-made bag packaging machine line, 3D packing machine and other full series of packaging equipment,.Our packing machines  are widely used in various industries different material packaging.

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Our company has strong technical force, excellent machinery and equipment. We can provide customers with technical advice for free, we can design and manufacture non-standard packaging equipment, product quality is reliable, timely service, I hope your brilliant we witness together!

FREQUENTLY ASKED QUESTIONS

How can I get a quote and technical proposal?

Share your material type, output needs, and specifications – we’ll send a detailed proposal and quote within 24 hours.

How do you handle international shipping and installation?

We manage export packaging, sea/air freight, and offer on-site installation guidance by engineers (optional).

What is the Minimum Order Quantity (MOQ)?

Standard machines have MOQ of 1 unit, while custom solutions depend on project evaluation.

Do your machines have international certifications?

All equipment complies with CE and other safety standards, with full certification documentation available.

What about after-sales service?

We offer prompt technical support, remote diagnostics, and rapid spare parts delivery globally.

How do you ensure equipment quality?

Our experienced technical team enforces strict quality control to guarantee reliability and durability.

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1）Imported PLC full computer control system, color touch screen, easy to operate,

intuitive and efficient.

2）Impoted servo film transport system, imported color code sensor, accurate positioning,
excellent overall performance and beautiful packaging.
3）A variety of automatic alarm protection functions to minimize losser.
4）Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）Optional English or other languages screen display, easy and simple operation.
Both packaging speed and bag length can be set with one click.
7）All machines have CE certification.
