KC-420/520/720 Automatic Vertical Packing Machine With cup measuring For granule product

APPLICATION:

It is suitable for packaging granular products such as grains, seeds, etc

KC-420/520/720 Automatic Vertical Packing Machine With cup measuring For granule product

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance;

Scan the code to watch the video

WhatsApp:

+86 15916083726

Email:

info@kechuangpack.com
weilixiong726@kechuangpack.com

Category:

Vertical Form-Fill-Seal (VFFS) Machine

Chat now

TECHNICAL PARAMETER

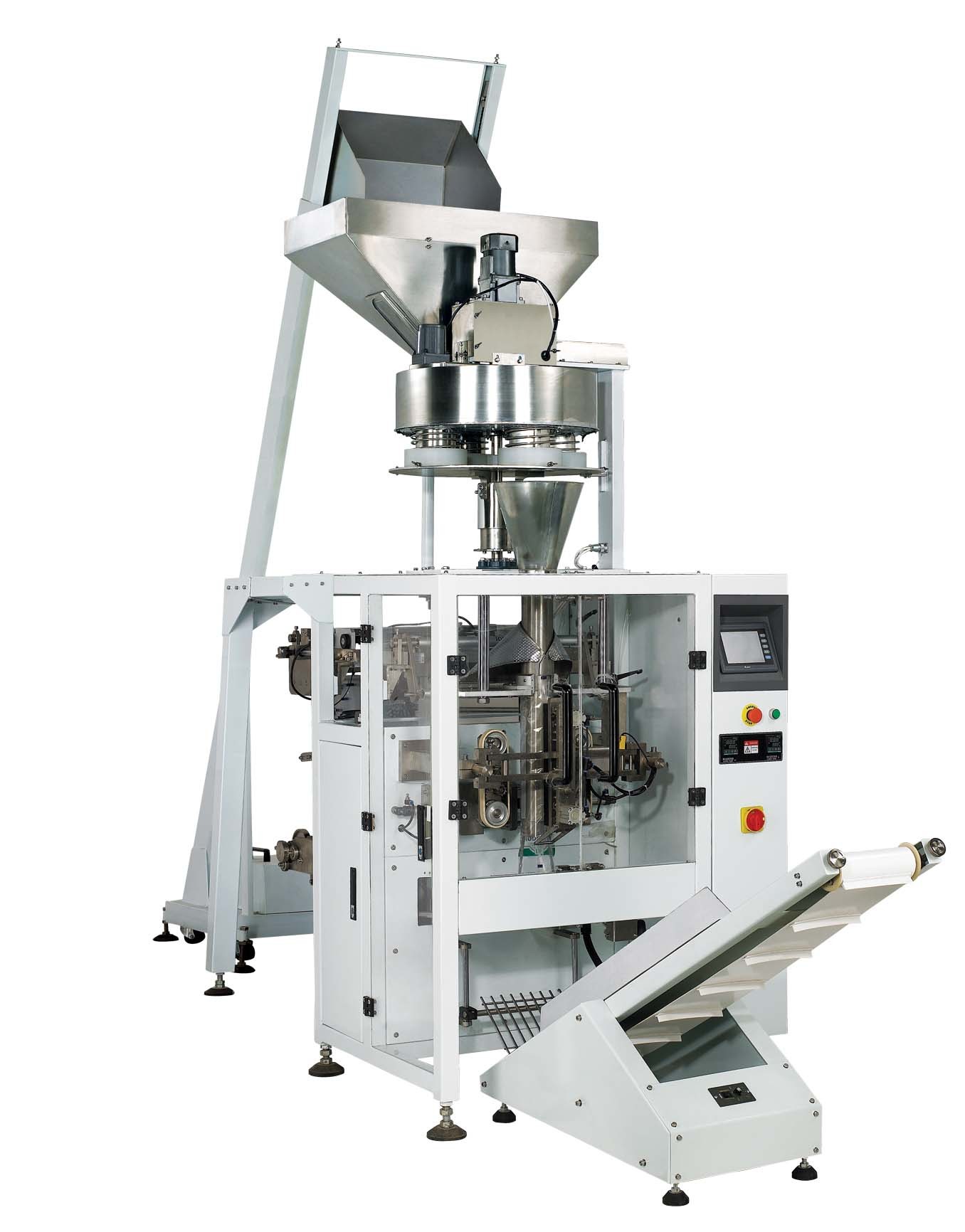

KC-420 Automatic Vertical Packing Machine With cup measuring For granule product

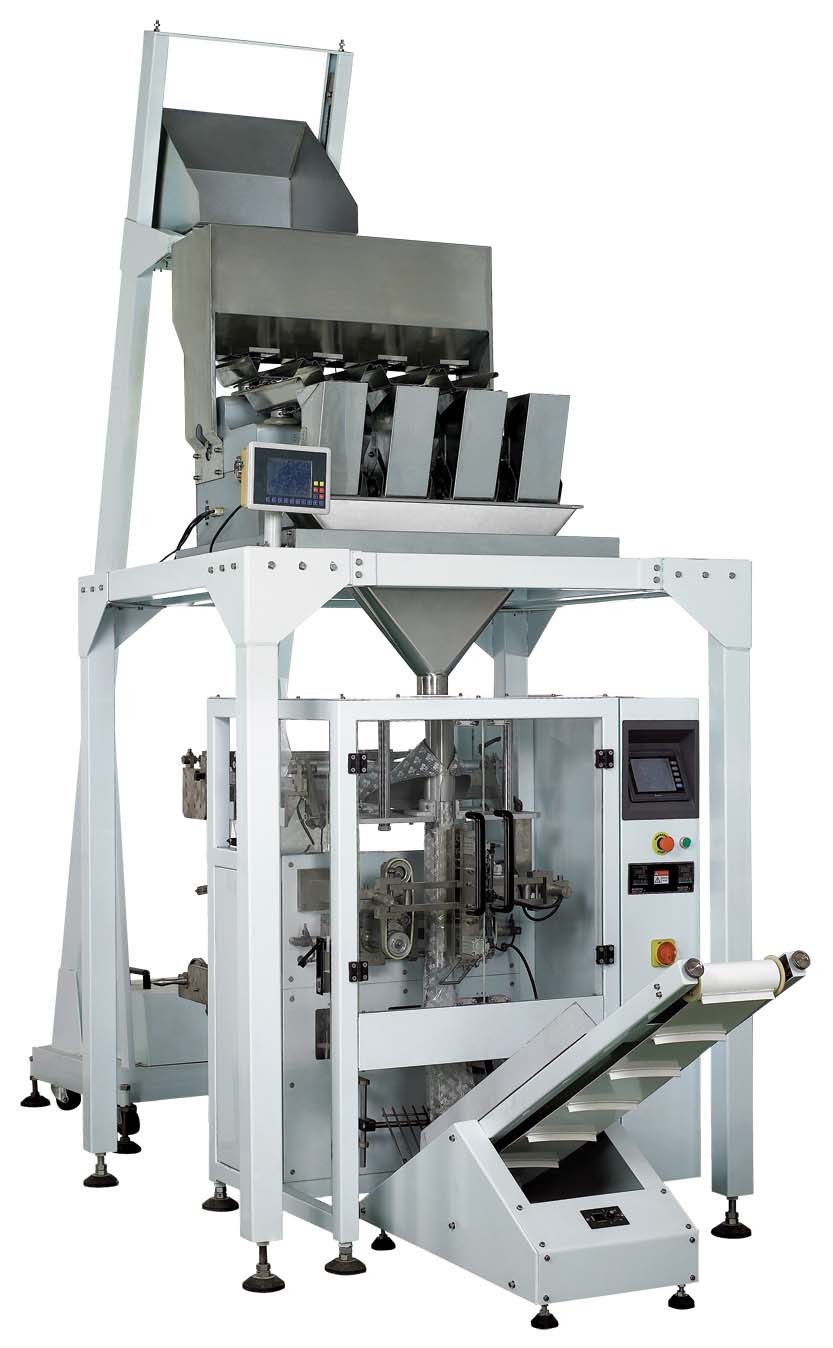

KC-420 Automatic Vertical Packing Machine With four head scale For granule product

PARAMETER FOR PACKING MACHINE
Model	KC-420	KC-520	KC-720
Film Width	Max.420mm	Max.520mm	Max.720mm
Bag Length	80~300mm	80-350MM	100-500MM
Film Width	60~200mm	100-250MM	180-350MM
Roll Diameter	Max.320MM	Max.320MM	Max.320MM
Film Thickness	0.04-0.08mm	0.04-0.12MM	0.04-0.12MM
Measurement Range	150~1500ml	150~2000ml	150~4000ml
Packing Speed	50~60bags/min	50~60bags/min	50~55bags/min
Power	220V,50~60HZ,2.2KVA	220V 50/60HZ 3KW	220V 50/60HZ 3KW
Machine Size(MM)	(L)1217(W)1015(H)1343	(L)1488(W)1080(H)1490	(L)1780(W)1350(H)2050
Machine Weight	About 650KG	About 680KG	About 750KG
Option Device	1. Date Coder 2. Hole Punching Device(Pinhole, Round hole, the butterfly hole) 3. Linking bag control device 4. Air-filling Device 5. Air Exhaust Device 6. Tear Notch Device 7. Nitrogen inflation device 8. Gusset bag

PRODUCT APPLICATION SCOPE

More applications

Food packaging machine	Vacuum packaging machine	Automatic weighing packaging machine	Screw packaging machine	Liquid packaging machine
Fruit packaging machine	horizontal packaging machine	Shrink wrapping machine	Sauce packaging machine	Vertical packaging machine
Powder packaging machine	granule packaging machine	Vegetable packaging machine	Hardware packaging machine	Medicine packaging machine
Commodity packaging machine	Pet food packaging machine	Tissue packaging machine	Nut packaging machine	Hardware packaging machine
Acrylic pigment packaging machine	Automatic counting packaging machine	Frozen food packaging machine	Disposable tableware packaging machine	Tea packaging machine
Gift wrapping machine	label machine	Filling machine	Multi lane packaging machine	Per-made bag packaging machine
Per-made bag Vacuum packaging machine	boxing machine	Carton sealer	Mask packaging machine	Foshan packaging machine
Packaging machine factory	Hotel supplies packaging machine	Slipper packaging machine	Disposable dental packaging machine	Auto screw parts packaging machine
Express bag packaging machine	Bubble film packaging machine	Aluminum profile packaging machine	Steel pipe packaging machine	Wet wipes packaging machine
Furniture screw accessories packaging machine	Non-woven bag packaging machine	Toilet paper packaging machine	stationery packaging machine	Baby product packaging machine
Cosmetic packaging machine	Automatic toilet paper packaging machine	Noodle packaging machine	Pasta packaging machine	Snack packaging machine
Candy packaging machine	Puffed food packaging machine	Baked goods packaging machine	Powder packaging machine	Plate packaging machine
Cup packaging machine	Disposable tableware packaging machine	Disposable skin care product packaging machine	Toy packaging machine	Potato Chips Snacks packaging machine
Auto packaging machine with multi-head weighers	Dry Fruit packaging machine	Automatic packaging Machine for slice food	Coffee packaging machine	Bean packaging machine

Tag list： KC-420/520/720 Automatic Vertical Packing Machine With cup measuring For granule product

KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product

420/520/720 Liquid vertical packaging machine

KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product

420/520/720 Liquid vertical packaging machine

OTHER RECOMMENDATIONS

260 Fully servo cartoning machine

KC-450XW/600XW

KC-450XW/600XW Full servo Reciprocating vacuum flow wrapping machine

KC-820X

KC-820X Full servo Disposable cup counting packaging machine

KCH-350X-S

KCH-350X Three servo wet wipes horizontal packaging machine

COMPANY DESCRIPTION

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Our main products are: Horizontal flow packaging machine line, vertical packaging machine line, screw packaging line, boxing machine line, per-made bag packaging machine line, 3D packing machine and other full series of packaging equipment,.Our packing machines are widely used in various industries different material packaging.

Our company has strong technical force, excellent machinery and equipment. We can provide customers with technical advice for free, we can design and manufacture non-standard packaging equipment, product quality is reliable, timely service, I hope your brilliant we witness together!

FREQUENTLY ASKED QUESTIONS

How can I get a quote and technical proposal?

Share your material type, output needs, and specifications – we’ll send a detailed proposal and quote within 24 hours.

How do you handle international shipping and installation?

We manage export packaging, sea/air freight, and offer on-site installation guidance by engineers (optional).

What is the Minimum Order Quantity (MOQ)?

Standard machines have MOQ of 1 unit, while custom solutions depend on project evaluation.

Do your machines have international certifications?

All equipment complies with CE and other safety standards, with full certification documentation available.

What about after-sales service?

We offer prompt technical support, remote diagnostics, and rapid spare parts delivery globally.

How do you ensure equipment quality?

Our experienced technical team enforces strict quality control to guarantee reliability and durability.
