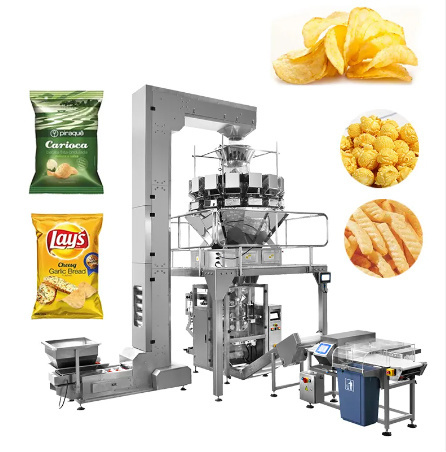

KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product

APPLICATION:

lt's suitable to use in packing the high accuracy and easy fragile material such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares. Medicine, etc.

  • KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product
  • KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product
KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product
KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product
+

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance;

Scan the code to watch the video

WhatsApp:

+86 15916083726

Email:

info@kechuangpack.com
weilixiong726@kechuangpack.com

Category:

Vertical Form-Fill-Seal (VFFS) Machine

Chat now
Contact Us

TECHNICAL PARAMETER

KC-520 Automatic Vertical Packing Machine With Multi-head Weigher For granule product
PARAMETER FOR PACKING MACHINE
Model
KC-420
KC-520
KC-720
Film Width
Max.420mm
Max.520mm
Max.720mm
Bag Length
80~300mm
80-350MM
100-500MM
Film Width
60~200mm
100-250MM
180-350MM
Roll Diameter
Max.320MM
Max.320MM
Max.320MM
Film Thickness
0.04-0.08mm
0.04-0.12MM
0.04-0.12MM
Measurement Range
150~1500ml
150~2000ml
150~4000ml
Packing Speed
50~60bags/min
50~60bags/min
50~55bags/min
Power
220V,50~60HZ,2.2KVA
220V 50/60HZ 3KW
220V 50/60HZ 3KW
Machine Size(MM)
(L)1217*(W)1015*(H)1343
(L)1488*(W)1080*(H)1490
(L)1780*(W)1350*(H)2050
Machine Weight
About 650KG
About 680KG
About 750KG
Option Device
1. Date Coder                 2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device                 4. Air-filling Device
5. Air Exhaust Device                               6. Tear Notch Device

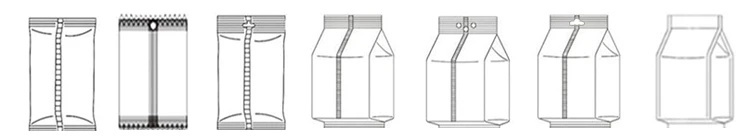

7. Nitrogen inflation device                     8. Gusset bag



PRODUCT APPLICATION SCOPE

Pasta packing samples
Packing sample
Potato chips packing samples
       Packageable products



Packing sample



Packing sample

More applications
