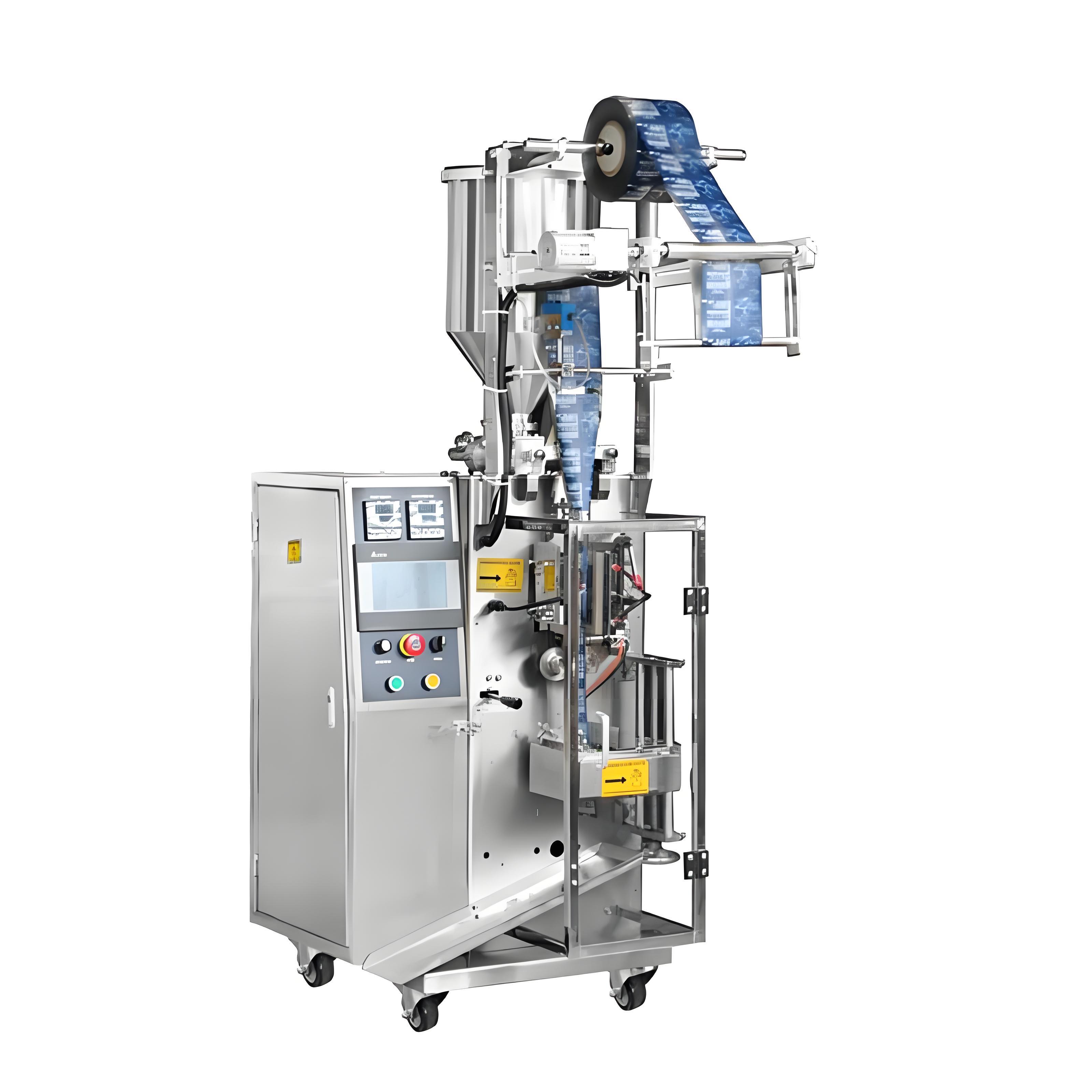

KC-60Y Liquid & Paste Automatic Packing Machine
APPLICATION:
This machine is suitable for the automatic packaging of liquid, paste and sauce materials in pharmaceutical, food, cosmetics, chemical and other products, such as: shampoo, shower gel, cream, seasoning oil, leaf fertilizer, chili sauce, tomato sauce, etc.
MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS
Product advantages
1. The liquid and viscous automatic packaging machine can automatically complete the whole work of measuring, bag making, filling, sealing, cutting, counting, hot pressing batch number and so on in the packaging process Chinese display screen control system.
2. Wrap the stainless steel box, only need to set the required parameters (filling measurement bag length, etc.) in the display setting unit,
3. The control system will automatically optimize and match the cooperation of each action to achieve the best packaging speed. Controlled by stepper motors, the system is highly accurate and does not require the adjustment of other parts to change the length of the bag, and it is accurate.
Scan the code to watch the video
Category:
TECHNICAL PARAMETER
1. When packaging packaging materials with color labels, complete trademark patterns can be obtained; The bag is made with a flat and good edge.
2. Stepless adjustment speed and bag length: The packaging speed and bag length can be adjusted steplessly within the rated range, and there is no need to replace parts.
3. The design adopts a unique embedded seal, reinforced heat sealing mechanism, intelligent temperature controller temperature control, with good thermal balance to adapt to various packaging materials, performance number, low noise, clear sealing pattern, strong sealing;
4. According to the needs of users, by replacing the knife, the straight cut, the pattern cutting and the one-line joint cutting can be realized, so that the cutter is stable and reliable when cutting the bag without getting stuck in the bag; Easy to operate.
5. Three-sided or four-sided heat sealing molds and molders can be replaced according to customer requirements to meet the needs of different products.
Machine parameters
| Production capacity (bags/min) | 30-60 |
| Measurement range (ml) | 1-100ML |
| Bag size (mm) | length (L) 40-200, width (W) 40-100 |
| Total power(watts) | 1180 |
| Net weight (kg) | 180 |
| Supply voltage | 220 volts, 380 volts/50 Hz |
| Packaging materials | paper/polyethylene, polyethylene/aluminum foil/polyethylene, nylon/polyethylene, tea filter paper, etc |
| Dimensions | 800×800×1800 (L×W×H) |
Product configuration list:
Product Name | 标准配置 |
名称/原产地 | |
Mitsubishi PLC | |
Stepper motor | Jiangsu Huanyu |
Temperature control meter module | Yuyao Keyang Instrument |
Color mark | Baideli/Zhejiang |
photoelectric and Electrical Section |
|
Intermediate relay | Yatai/Zhejiang |
Solid State relay | Yatai/Zhejiang |
Main motor | Zhaoqing Zhongbao |
paper Supply motor | Jiangsu Huanyu, |
Power Switch Section |
|
Proximity switch | China |
Button switch | China |
Power switch | Omron/Japan |
