KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine

APPLICATION:

Suitable products: Suitable for face tissue, napkins, toilet paper, box paper of Transparent film or color printing packaging.
Total height of 70mm (generally 50- - -150). Packaging film: 2.5um-3.0um CPP single (printable).
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
  • KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine
+

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1.Full servo control, bag length is set and cut, no need to adjust the air walk, one step in place, save time and film.
2. Human-machine interface, and the parameter setting is convenient and fast. 3. Fault self-diagnosis function, with clear fault display at a glance.
4. High sensitivity photoelectric color color tracking, digitized input the sealing position, to make the sealing position more accurate. 5. Temperature independent PID control, better suitable for a variety of packaging materials.
6. Positioning and shutdown function, do not stick to the knife, do not waste the envelope.
7. The transmission system is simple, more reliable and more convenient.
8. All controls are realized by software, which facilitate function adjustment and technology upgrade, and never lag behind.

Scan the code to watch the video

WhatsApp:

+86 15916083726

Email:

info@kechuangpack.com
weilixiong726@kechuangpack.com

Category:

​Flow Wrapping Machine

Chat now
Contact Us

TECHNICAL PARAMETER

KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine

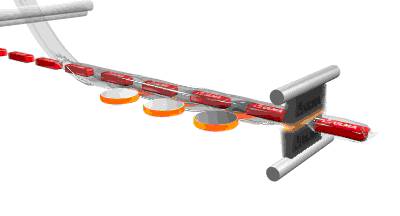

Working principle diagram

Technical parameters

Type

KCH-400D

KCH-450D

Film width

Max.400mm

Max.450mm

Bag length

150-500mm

150-500mm

Bag width

50-180mm

50-210mm

Product height

Max.70mm

Max.90mm

Film diameter

Max.350mm

Max.350mm

Packaging speed

40-120 Packages / Minutes

40-80 Packages / Minutes

Power

220V, 50/60Hz, 3.5kW

220V, 50/60Hz, 4kW

Machine size

(L)5500×(W)855×(H)1450mm

(L)5500×(W)955×(H)1450mm

Machine weight

About 580kg

About 650kg



PRODUCT APPLICATION SCOPE

Tissue packaging case
Tissue packaging case

More applications

Food packaging machineVacuum packaging machineAutomatic weighing packaging machineScrew packaging machineLiquid packaging machine
Fruit packaging machinehorizontal packaging machineShrink wrapping machineSauce packaging machineVertical packaging machine
Powder packaging machinegranule packaging machineVegetable packaging machineHardware packaging machineMedicine packaging machine
Commodity packaging machinePet food packaging machineTissue packaging machineNut packaging machineHardware packaging machine
Acrylic pigment packaging machineAutomatic counting packaging machineFrozen food packaging machineDisposable tableware packaging machineTea packaging machine
Gift wrapping machinelabel machineFilling machineMulti lane packaging machinePer-made bag packaging machine
Per-made bag Vacuum packaging machineboxing machineCarton sealerMask packaging machineFoshan packaging machine
Packaging machine factoryHotel supplies packaging machineSlipper packaging machineDisposable dental packaging machineAuto screw parts packaging machine
Express bag packaging machineBubble film packaging machineAluminum profile packaging machineSteel pipe packaging machineWet wipes packaging machine
Furniture screw accessories packaging machineNon-woven bag packaging machineToilet paper packaging machinestationery packaging machineBaby product packaging machine
Cosmetic packaging machineAutomatic toilet paper packaging machineNoodle packaging machinePasta packaging machineSnack packaging machine
Candy packaging machinePuffed food packaging machineBaked goods packaging machinePowder packaging machinePlate packaging machine
Cup packaging machineDisposable tableware packaging machineDisposable skin care product packaging machineToy packaging machinePotato Chips Snacks packaging machine
Auto packaging machine with multi-head weighersDry Fruit packaging machineAutomatic packaging Machine for slice foodCoffee packaging machineBean packaging machine

Tag list： KCH-400D/450D Full servo（UP-ROLL）paper towel packaging machine

Previous Page

KCH-450D/600D Up-roll Full Servo Vacuum Flow Wrapping Machine

KCH-350X Full servo (DOWN-ROLL) tissue packaging machine

Next Page

Previous Page

KCH-450D/600D Up-roll Full Servo Vacuum Flow Wrapping Machine

Next Page

KCH-350X Full servo (DOWN-ROLL) tissue packaging machine

COMPANY DESCRIPTION

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Our main products are:  Horizontal flow packaging machine line, vertical packaging machine line, screw packaging  line, boxing machine  line, per-made bag packaging machine line, 3D packing machine and other full series of packaging equipment,.Our packing machines  are widely used in various industries different material packaging.

Foshan Kechuang Packaging Machinery Equipment Co., Ltd.

Our company has strong technical force, excellent machinery and equipment. We can provide customers with technical advice for free, we can design and manufacture non-standard packaging equipment, product quality is reliable, timely service, I hope your brilliant we witness together!

FREQUENTLY ASKED QUESTIONS

How can I get a quote and technical proposal?

Share your material type, output needs, and specifications – we’ll send a detailed proposal and quote within 24 hours.

How do you handle international shipping and installation?

We manage export packaging, sea/air freight, and offer on-site installation guidance by engineers (optional).

What is the Minimum Order Quantity (MOQ)?

Standard machines have MOQ of 1 unit, while custom solutions depend on project evaluation.

Do your machines have international certifications?

All equipment complies with CE and other safety standards, with full certification documentation available.

What about after-sales service?

We offer prompt technical support, remote diagnostics, and rapid spare parts delivery globally.

How do you ensure equipment quality?

Our experienced technical team enforces strict quality control to guarantee reliability and durability.

MAIN PERFORMANCE & STRUCTURE CHARACTERISTICS

1.Full servo control, bag length is set and cut, no need to adjust the air walk, one step in place, save time and film.
2. Human-machine interface, and the parameter setting is convenient and fast. 3. Fault self-diagnosis function, with clear fault display at a glance.
4. High sensitivity photoelectric color color tracking, digitized input the sealing position, to make the sealing position more accurate. 5. Temperature independent PID control, better suitable for a variety of packaging materials.
6. Positioning and shutdown function, do not stick to the knife, do not waste the envelope.
7. The transmission system is simple, more reliable and more convenient.
8. All controls are realized by software, which facilitate function adjustment and technology upgrade, and never lag behind.
